VHM vs Stock: What Actually Changes on Your 2- Stroke

Key Takeaways

• The biggest difference isn't the gold finish. A stock head has one fixed combustion chamber, while a VHM head uses a separate insert, so compression becomes something you choose instead of something you live with.
• The number on a VHM insert is its combustion chamber volume in cc. A lower number means higher compression and more hit, and a higher number means lower compression, smoother power and more over-rev.
• A VHM head changes compression, squish and how the charge burns. It doesn't change port timing, the pipe or the carb, which still shape most of the power curve.
• Retuning a stock head means machining it, and you can't undo a cut. Retuning a VHM means swapping an insert that costs $65 to $88 at MXTire.

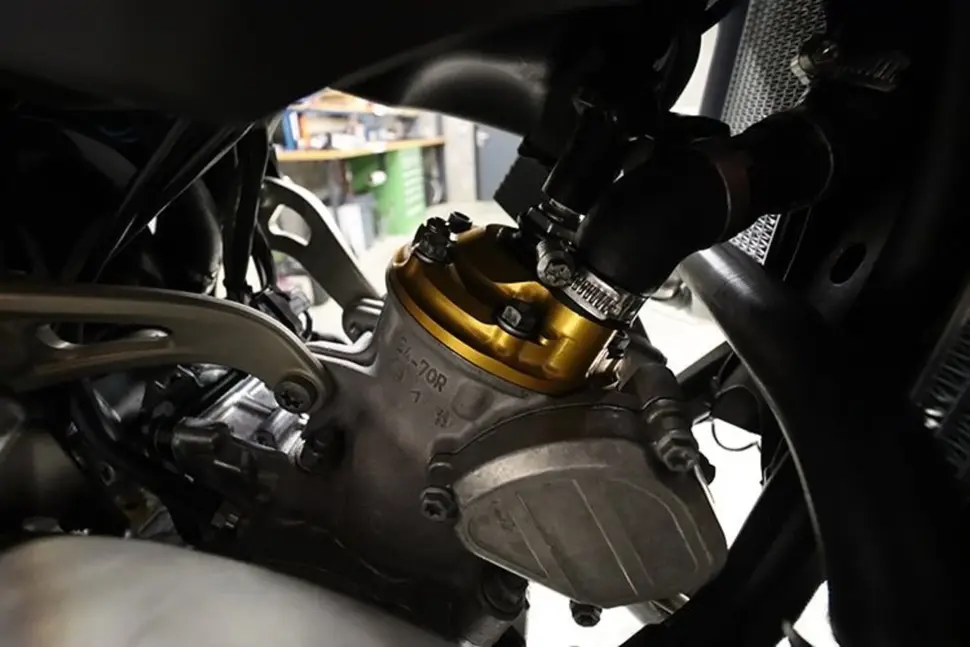

Put a VHM head next to your stock head and the difference looks cosmetic: one is gold and one isn't. The real changes are inside the combustion chamber, and they make more sense once you know what a cylinder head does on a 2-stroke. This breakdown covers what changes when you go from stock to VHM, what stays exactly the same, and how to read the insert numbers before you buy.

What do upgraded cylinder heads do?

An upgraded 2-stroke cylinder head changes the shape and volume of the combustion chamber. That sets the compression ratio and the squish, the tight gap that pushes the fuel charge toward the spark plug as the piston rises. Together they control how fast and how cleanly the charge burns, which you feel as throttle response, detonation resistance and where the power comes on.

A 2-stroke head has no valves or camshaft. It's a cap that seals the top of the cylinder, holds the spark plug, carries coolant around the chamber, and shapes the space where combustion happens. Because it's that simple, small differences in its shape have a big effect on how the engine runs.

Stock head vs VHM head, side by side

The practical difference shows up the second time you want to change something. With a stock head, each change is a trip to a machinist. With a VHM head, it's an insert swap from the cylinder heads and inserts category.

What does cc mean on a VHM insert?

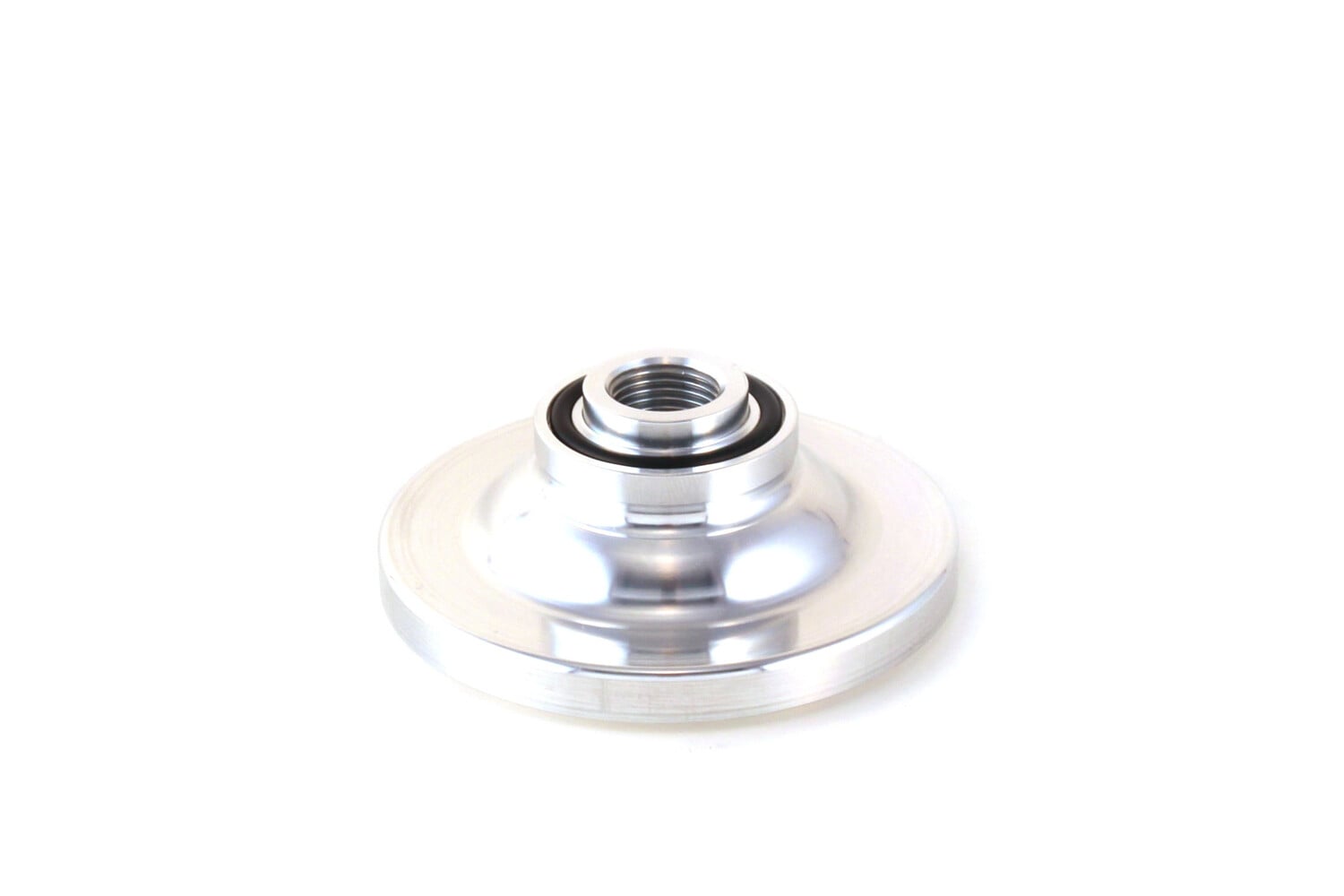

The cc number on a VHM insert is the volume of its combustion chamber in cubic centimeters. A smaller number means a smaller chamber and higher compression, and a bigger number means lower compression. On MXTire's KTM 125SX '23-'24 inserts, for example, you can choose between 11.00, 11.40 and 11.60 cc, with 11.00 giving the highest compression of the three.

VHM describes its higher-volume inserts as giving better over-rev, more top speed and good detonation resistance, which suits hard ground and enduro riding. Lower-volume inserts put more punch at the bottom but ask more of your fuel and your jetting. Some model listings also mark one insert as the "VHM standard" version, which is the baseline for that bike.

What a VHM head doesn't change

A new head leaves most of the engine alone. Port timing stays with the cylinder. The pipe still decides a big share of where the power lives. The carb and its jetting start where they were, although a compression change can move them, which is covered in our guide on re-jetting after a VHM head or piston. Ignition timing doesn't change either, unless you also swap the ignition unit. If you want to go that far, VHM also makes CDI units for the 65SX and 85SX.

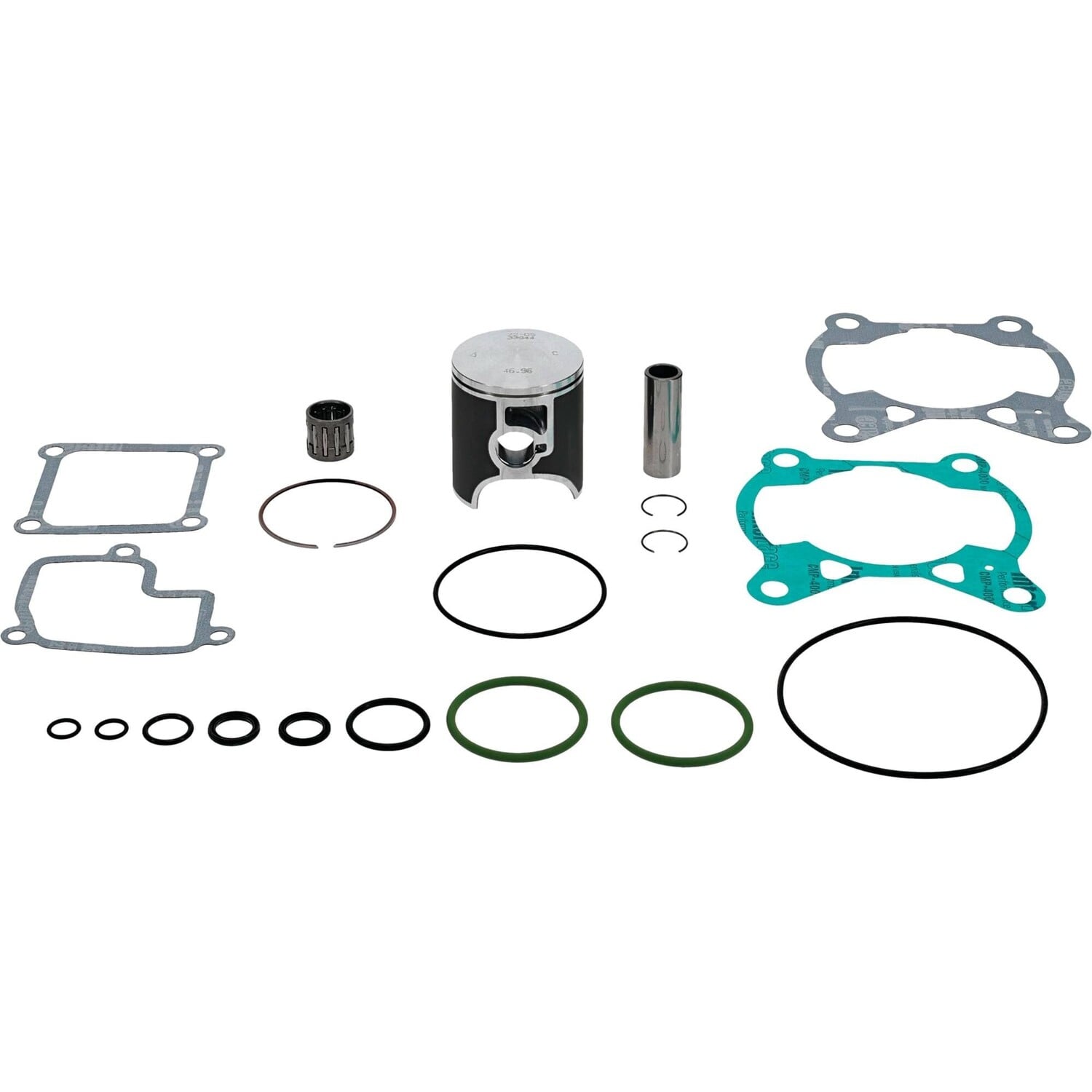

The head also can't fix wear. If your piston is tired or your cylinder is scored, the head sits on top of the problem. Refresh the top end from the pistons and top end kits category first, and if you're chasing a bigger change in character, look at the 2-stroke pipes alongside the head rather than instead of it.

Squish: the change you can't see

Squish is the gap between the top of the piston at top dead center and the flat band around the edge of the combustion chamber. As the piston rises, that band squeezes the mixture toward the center of the chamber and the spark plug. A tighter squish speeds up the burn and helps resist detonation. Too tight, and the piston can touch the head.

This is the part of a VHM install most riders skip, and it's the part that decides whether the head performs. After installation, measure squish with a piece of solder through the spark plug hole and compare it with VHM's instructions. It takes a few minutes and tells you whether the head is set up the way it was designed to run.

Frequently asked questions

Are bigger cc heads better?

Not better, just different. A bigger cc insert lowers compression for smoother power, more over-rev and easier fuel requirements, while a smaller one adds bottom-end hit. The right choice depends on your track, your fuel and how you ride.

Does a VHM head fit my stock cylinder?

VHM heads are made for specific models and years, and they bolt onto the stock cylinder for that bike. Check the fitment carefully, since some models, like the KTM 125SX, use different heads for different years.

Can I go back to my stock head later?

Yes. A head swap doesn't modify the cylinder, so keep your stock head as a spare. If you changed jetting for the VHM, set it back when you reinstall the stock head.

Does a VHM head make my bike louder?

The head itself isn't what sets exhaust noise. Sound comes mostly from the pipe and silencer, although a sharper-running engine can sound crisper.

Going from stock to VHM changes the combustion chamber, the compression options and the squish, and it leaves the rest of the engine as it was. If that flexibility fits how you ride, our guide on whether a VHM cylinder head is worth it helps you decide, and every head and insert in stock is in the VHM cylinder heads and parts collection.
