VHM Cylinder Head: Is It Worth It? A Rider's Guide

Key Takeaways

• A VHM head is worth it when you want to tune compression, not when you want free horsepower. The value is the swappable insert: a $65 to $88 insert changes compression that would otherwise mean machining or replacing a head.
• The best time to buy one is when your stock head needs replacing anyway. A pitted or damaged head already means buying a head, and a VHM costs $210 to $266 for the minis and 125s MXTire stocks.
• On a stock bike that already runs clean, expect a change in how the power comes on, not a different motor. The riders who get the most from a VHM head are also changing a piston, a pipe or their fuel.
• A VHM head works as a system. Squish, insert volume and piston crown shape have to match, which is why VHM makes inserts specifically for its 12° pistons.

Spending more than $200 on a cylinder head for a 2-stroke that already runs is a fair thing to question. A VHM cylinder head has a strong reputation, but reputation isn't the same as value for your bike. This guide covers what a VHM head actually does, what it costs at MXTire, and the situations where it earns its price versus the ones where your money does more somewhere else.

What does a VHM head do?

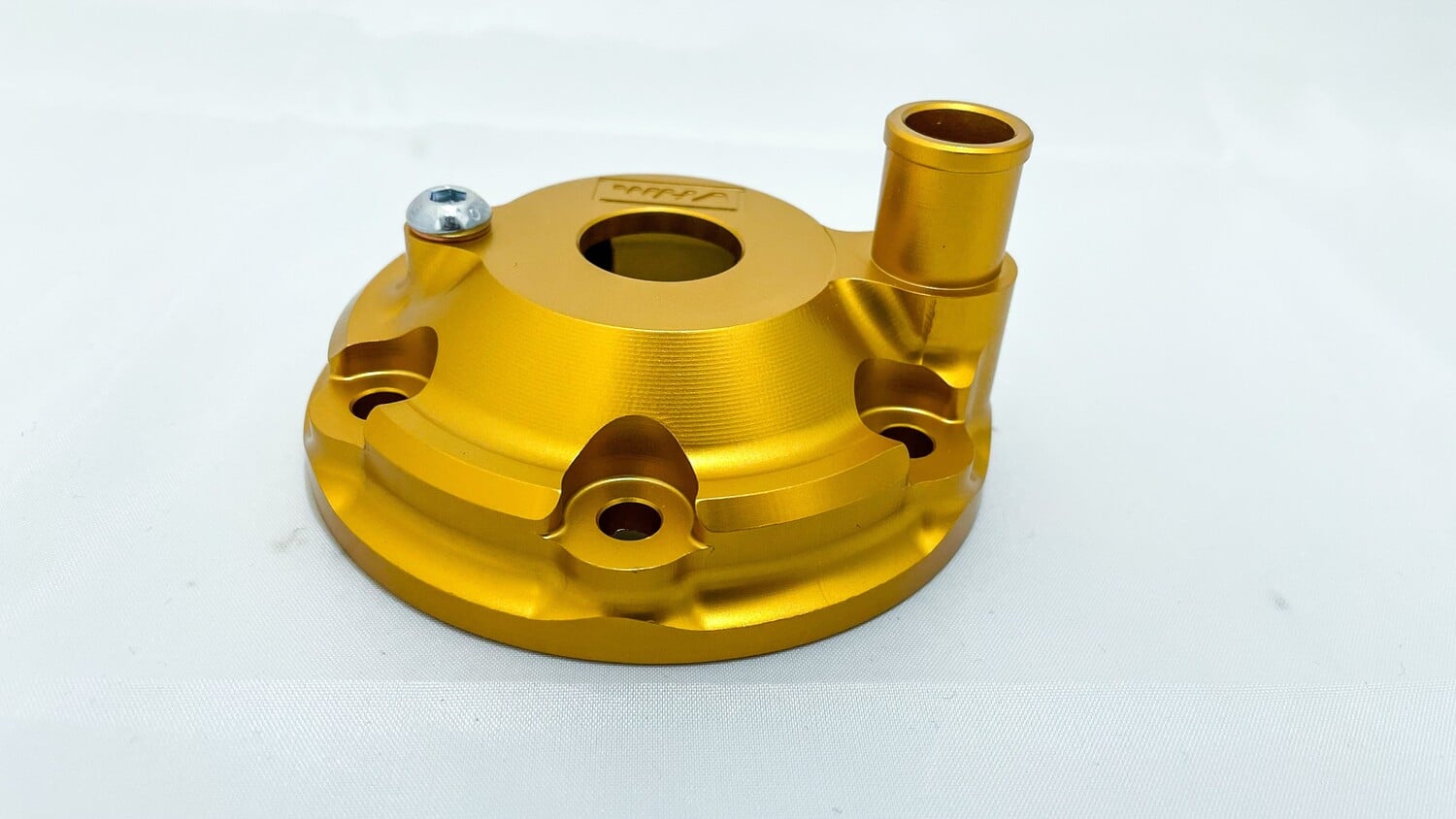

A VHM head replaces your stock one-piece cylinder head with a two-piece design: an outer head and a separate insert that forms the combustion chamber. Swapping the insert changes the chamber volume, and with it the compression ratio. That lets you tune how your 2-stroke makes power without machining or replacing the whole head.

VHM is a Dutch company that specializes in 2-stroke engine parts for motocross, road racing, karting and mopeds. It describes its head as having an exchangeable combustion chamber and an improved water duct. The insert is the part you change. A lower-volume insert raises compression for more punch off the bottom, while a higher-volume insert lowers it for smoother power and more over-rev. One detail catches first-time buyers: VHM inserts only fit VHM heads, not your stock head.

Is it worth replacing your stock cylinder head with a VHM?

It's worth it if your stock head is damaged, if you're changing compression to suit a new piston, pipe or fuel, or if you race and want to retune for different tracks. It's harder to justify on a stock bike that already runs clean, because the gain there is mostly a change in feel rather than a big jump in power.

Think about it as a one-time purchase that makes later changes cheap. Once the VHM head is on the bike, every future compression change costs the price of an insert. With a stock head, the only way to change compression is to have it machined, and you can't put the metal back if you go too far.

Does a VHM head add horsepower?

A VHM head can add some power, but mostly it changes where the power comes on, and no single number applies to every bike. The result depends on the insert you choose, your squish setting, your piston, your pipe and your jetting. Riders usually notice sharper response off the bottom or more over-rev before they notice a peak horsepower gain.

The reason is simple. The cylinder's port timing, the pipe and the ignition decide most of a 2- stroke's power curve. The head decides how well the fuel charge burns inside that curve. That makes it a tuning tool, not a shortcut. If your goal is a big change in character, look at the whole package instead of expecting the head to do it alone.

What a VHM head costs at MXTire

Here are the VHM cylinder heads currently listed in the VHM Racing Products collection, with the insert range for comparison.

MXTire lists inserts separately, so check each head's product page to confirm what's included before you order. Match the head to your exact model year too, since the KTM 125SX uses a different head for '16-'22 and '23-'24.

Who gets the most value from a VHM head

Three kinds of riders get the clearest return. The first is anyone whose stock head is pitted, cracked or damaged from a failure, because you're buying a head either way. The second is a rider building the motor, with a new piston, a pipe or a different fuel, who needs compression to match. If that's you, read our guide on re-jetting after a VHM head or piston before the first ride. The third is a racer who wants to retune for different tracks or conditions by swapping inserts.

The riders who should wait are the ones with a worn top end. A new head won't fix a tired piston or a scored cylinder, so start with a fresh piston kit and come back to the head once the motor is healthy.

Install it right, or the head can't do its job

A VHM head only works as designed if the squish clearance is right. Squish is the gap between the top of the piston at top dead center and the flat band around the combustion chamber. Measure it after installation with a piece of solder and compare it with the figure in the instructions. Too wide and you lose the benefit you paid for. Too tight and the piston can touch the head.

If you're changing the piston at the same time, match the insert to the piston crown. VHM lists inserts made for its 12° pistons, such as the 105SX 2025 insert for the 12° piston, and you'll find those next to the standard inserts in the cylinder heads and inserts category. Start the first ride with a new spark plug, so you can read it clearly afterward. For a deeper look at how the design differs from your stock head, see VHM vs stock: what actually changes.

Frequently asked questions

Do VHM inserts fit a stock cylinder head?

No. VHM inserts are made to fit VHM heads only, so you need the VHM head before an insert does anything for you.

Do I need race fuel with a VHM head?

It depends on the insert. A lower-volume, higher-compression insert needs higher-octane fuel to avoid detonation, while a milder insert is easier to run on good pump fuel. Pick the insert based on the fuel you actually plan to use.

Will a VHM head change my engine temperature?

VHM designs its heads with an improved water duct for better heat transfer. Your actual running temperature still depends on your jetting and compression, so a lean setup will run hot regardless of the head.

Should I buy a VHM head before or after a top end rebuild?

After, or at the same time. A healthy piston and cylinder let you judge what the head changed, and doing both together lets you match the insert to the new piston.

A VHM head is worth it when you'll use the thing that makes it different: the insert. If your head needs replacing, your motor is changing, or you want to tune compression without machining, it earns its price. Browse the VHM heads, inserts and piston kits in stock in the full VHM lineup at MXTire.
